# Scaling with Combinators and the Static Modeling Language

Up until this point, we have been using Gen’s generic built-in modeling language, which is a very flexible modeling language that is shallowly embedded in Julia. However, better performance and scaling characteristics can be obtained using specialized modeling languages or modeling constructs. This notebook introduces two built-in features of Gen:

These features provide both constant-factor speedups, as well as improvements in asymptotic orders of growth, over the generic built-in modeling language.

## Outline

Section 2: Introducing the map combinator

Section 5: Checking the inference programs

using Gen


## 1. Studying the scaling behavior of an inference program

Recall the regression model used to introduce iterative inference in an earlier tutorial:

@gen function model(xs::Vector{Float64})
slope = @trace(normal(0, 2), :slope)
intercept = @trace(normal(0, 2), :intercept)
noise = @trace(gamma(1, 1), :noise)
prob_outlier = @trace(uniform(0, 1), :prob_outlier)
n = length(xs)
ys = Vector{Float64}(undef, n)
for i = 1:n
if @trace(bernoulli(prob_outlier), :data => i => :is_outlier)
(mu, std) = (0., 10.)
else
(mu, std) = (xs[i] * slope + intercept, noise)
end
ys[i] = @trace(normal(mu, std), :data => i => :y)
end
ys
end;


We wrote a Markov chain Monte Carlo inference update for this model that performs updates on each of the ‘global’ parameters (noise, slope, intercept, and prob_outlier), as well as the ‘local’ is_outlier variable associated with each data point. The update takes a trace as input, and returns the new trace as output. We reproduce this here:

function block_resimulation_update(tr)

# Block 1: Update the line's parameters
line_params = select(:noise, :slope, :intercept)
(tr, _) = mh(tr, line_params)

# Blocks 2-N+1: Update the outlier classifications
(xs,) = get_args(tr)
n = length(xs)
for i=1:n
(tr, _) = mh(tr, select(:data => i => :is_outlier))
end

# Block N+2: Update the prob_outlier parameter
(tr, _) = mh(tr, select(:prob_outlier))

# Return the updated trace
tr
end;


We write a helper function that takes a vector of y-coordinates and populates a constraints choice map:

function make_constraints(ys::Vector{Float64})
constraints = choicemap()
for i=1:length(ys)
constraints[:data => i => :y] = ys[i]
end
constraints
end;


Finally, we package this into an inference program that takes the data set of all x- and y-coordinates ,and returns a trace. We will be experimenting with different variants of the model, so we make the model an argument to this function:

function block_resimulation_inference(model, xs, ys)
observations = make_constraints(ys)
(tr, _) = generate(model, (xs,), observations)
for iter=1:500
tr = block_resimulation_update(tr)
end
tr
end;


Let’s see how the running time of this inference program changes as we increase the number of data points. We don’t expect the running time to depend too much on the actual values of the data points, so we just construct a random data set for each run:

ns = [1, 3, 7, 10, 30, 70, 100]
times = []
for n in ns
xs = rand(n)
ys = rand(n)
start = time_ns()
tr = block_resimulation_inference(model, xs, ys)
push!(times, (time_ns() - start) / 1e9)
end

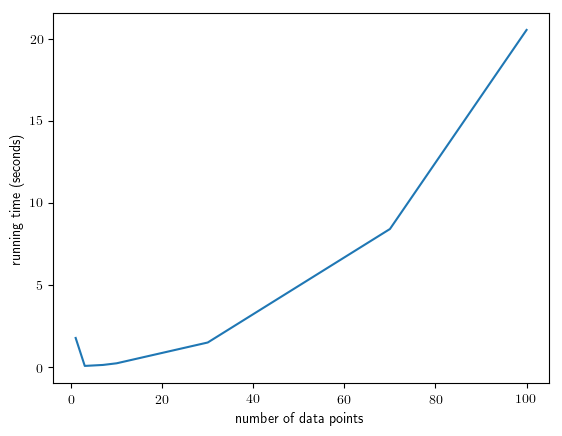

We now plot the running time versus the number of data points:

using PyPlot

plot(ns, times)
xlabel("number of data points")
ylabel("running time (seconds)");


The inference program seems to scale quadratically in the number of data points.

To understand why, consider the block of code inside block_resimulation_update that loops over the data points:

# Blocks 2-N+1: Update the outlier classifications
(xs,) = get_args(tr)
n = length(xs)
for i=1:n
(tr, _) = mh(tr, select(:data => i => :is_outlier))
end


The reason for the quadratic scaling is that the running time of the call to mh inside this loop also grows in proportion to the number of data points. This is because the updates to a trace of a model written the generic built-in modeling language always involve re-running the entire model generative function.

However, it should be possible for the algorithm to scale linearly in the number of data points. Briefly, deciding whether to update a given is_outlier variable can be done without referencing the other data points. This is because each is_outiler variable is conditionally independent of the outlier variables and y-coordinates of the other data points, conditioned on the parameters.

We can make this conditional independence structure explicit using the Map generative function combinator. Combinators like map encapsulate common modeling patterns (e.g., a loop in which each iteration is making independent choices), and when you use them, Gen can take advantage of the restrictions they enforce to implement performance optimizations automatically during inference. The Map combinator, like the map function in a functional programming language, helps to execute the same generative code repeatedly.

## 2. Introducing the map combinator

To use the map combinator to express the conditional independences in our model, we first write a generative function to generate the is_outlier variable and the y-coordinate for a single data point:

@gen function generate_single_point(x::Float64, prob_outlier::Float64, noise::Float64,
slope::Float64, intercept::Float64)
is_outlier = @trace(bernoulli(prob_outlier), :is_outlier)
mu = is_outlier ? 0. : x * slope + intercept
std = is_outlier ? 10. : noise
y = @trace(normal(mu, std), :y)
return y
end;


We then apply the Map, which is a Julia function, to this generative function, to obtain a new generative function:

generate_all_points = Map(generate_single_point);


This new generative function has one argument for each argument of generate_single_point, except that these arguments are now vector-valued instead of scalar-valued. We can run the generative function on some fake data to test this:

xs = [0, 1, 2, 3, 4]
prob_outliers = fill(0.5, 5)
noises = fill(0.2, 5)
slopes = fill(0.7, 5)
intercepts = fill(-2, 5)
trace = simulate(generate_all_points, (xs, prob_outliers, noises, slopes, intercepts));


We see that the generate_all_points function has traced 5 calls to generate_single_point, under namespaces 1 through 5. The Map combinator automatically adds these indices to the trace address.

println(get_choices(trace))

│
├── 1
│   │
│   ├── :y : -9.299459431407582
│   │
│   └── :is_outlier : true
│
├── 2
│   │
│   ├── :y : -1.321273012367464
│   │
│   └── :is_outlier : false
│
├── 3
│   │
│   ├── :y : 0.520205709733691
│   │
│   └── :is_outlier : true
│
├── 4
│   │
│   ├── :y : -0.2497222484225019
│   │
│   └── :is_outlier : false
│
└── 5
│
├── :y : 0.4961726596283081
│
└── :is_outlier : true


Now, let’s replace the Julia for loop in our model with a call to this new function:

@gen function model_with_map(xs::Vector{Float64})
slope = @trace(normal(0, 2), :slope)
intercept = @trace(normal(0, 2), :intercept)
noise = @trace(gamma(1, 1), :noise)
prob_outlier = @trace(uniform(0, 1), :prob_outlier)
n = length(xs)
ys = @trace(generate_all_points(xs, fill(prob_outlier, n), fill(noise, n), fill(slope, n), fill(intercept, n)), :data)
ys
end;


Note that this new model has the same address structure as our original model had, so our inference code will not need to change. For example, the 5th data point’s $y$ coordinate will be stored at the address :data => 5 => :y, just as before. (The :data comes from our @trace invocation in the better_model definition, and the :y comes from generate_point; only the 5 has been inserted automatically by Map.)

trace = simulate(model_with_map, (xs,));
println(get_choices(trace))

│
├── :intercept : -5.258730415956281
│
├── :slope : -0.35831621634793925
│
├── :prob_outlier : 0.6504269974681032
│
├── :noise : 0.873700919240994
│
└── :data
│
├── 1
│   │
│   ├── :y : -3.6313467104186437
│   │
│   └── :is_outlier : true
│
├── 2
│   │
│   ├── :y : 10.914595507340668
│   │
│   └── :is_outlier : true
│
├── 3
│   │
│   ├── :y : -6.0345837282037635
│   │
│   └── :is_outlier : false
│
├── 4
│   │
│   ├── :y : -13.647061274089857
│   │
│   └── :is_outlier : true
│
└── 5
│
├── :y : 10.76592726168024
│
└── :is_outlier : true


Let’s test the running time of the inference program, applied to this new model:

with_map_times = []
for n in ns
xs = rand(n)
ys = rand(n)
start = time_ns()
tr = block_resimulation_inference(model_with_map, xs, ys)
push!(with_map_times, (time_ns() - start) / 1e9)
end

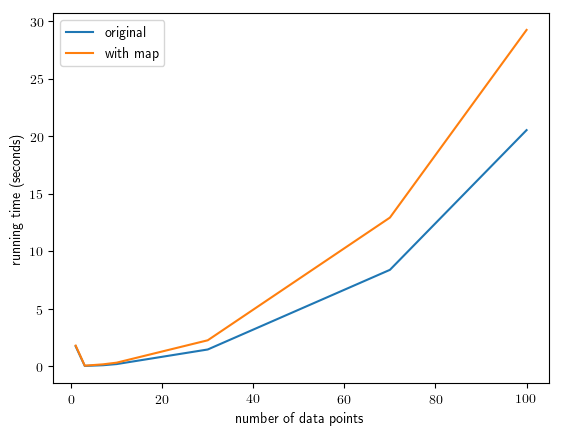

We plot the results and compare them to the original model, which used the Julia for loop:

plot(ns, times, label="original")
plot(ns, with_map_times, label="with map")
xlabel("number of data points")
ylabel("running time (seconds)")
legend();


We see that the quadratic scaling did not improve. In fact, we actually got a that happed was a constant factor slowdown.

We can understand why we still have quadratic scaling, by examining the call to generate_single_point:

ys = @trace(generate_all_points(xs, fill(prob_outlier, n), fill(noise, n), fill(slope, n), fill(intercept, n)), :data)


Even though the function generate_all_points knows that each of the calls to generate_single_point is conditionally independent, and even it knows that each update to is_outlier only involves a single application of generate_single_point, it does not know that none of its arguments change within an update to is_outlier. Therefore, it needs to visit each call to generate_single_point. The generic built-in modeling language does not provide this information the generative functions that it invokes.

## 3.Combining the map combinator with the static modeling language

In order to provide generate_all_points with the knowledge that its arguments do not change during an update to the is_outlier variable, we need to write the top-level model generative function that calls generate_all_points in the Static Modeling Language, which is a restricted variant of the built-in modeling language that uses static analysis of the computation graph to generate specialized trace data structures and specialized implementations of trace operations. We indicate that a function is to be interpreted using the static language using the static annotation:

@gen (static) function static_model_with_map(xs::Vector{Float64})
slope = @trace(normal(0, 2), :slope)
intercept = @trace(normal(0, 2), :intercept)
noise = @trace(gamma(1, 1), :noise)
prob_outlier = @trace(uniform(0, 1), :prob_outlier)
n = length(xs)
ys = @trace(generate_all_points(xs, fill(prob_outlier, n), fill(noise, n), fill(slope, n), fill(intercept, n)), :data)
return ys
end;


The static language has a number of restrictions that make it more amenable to static analysis than the unrestricted modeling language. For example, we cannot use Julia for loops, and the return value needs to explicitly use the return keyword, followed by a symbol (e.g. ys). Also, each symbol used on the left-hand side of an assignment must be unique. A more complete list of restrictions is given in the documentation.

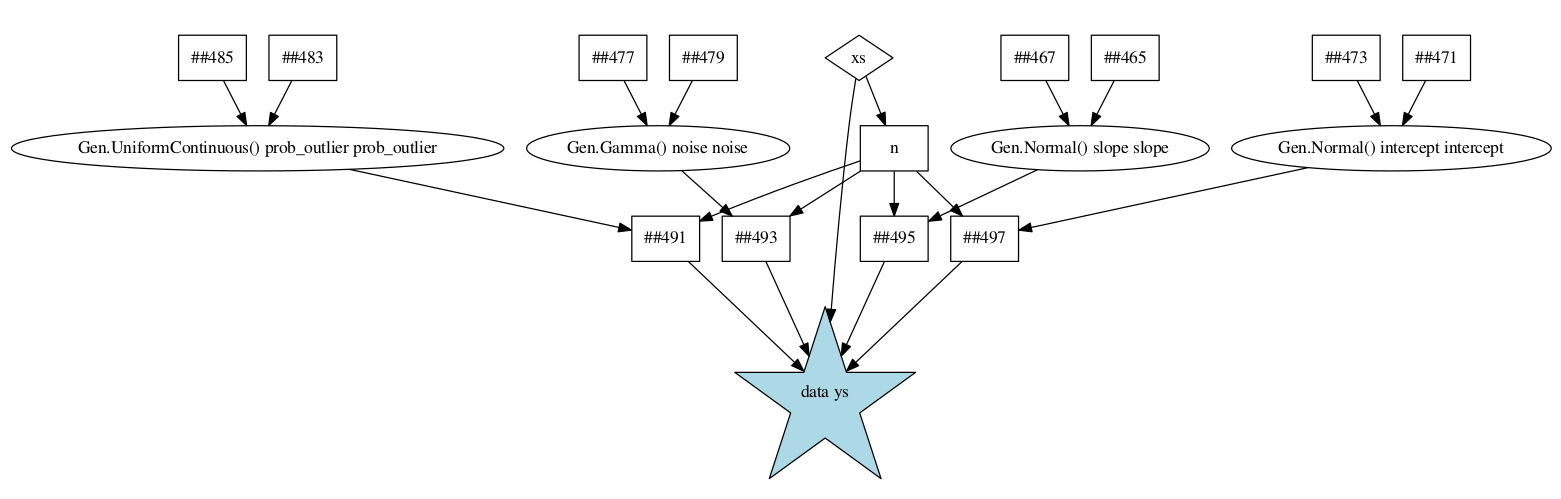

Below, we show the static dependency graph that Gen builds for this function. Arguments are shown as diamonds, Julia computations are shown as squares, random choices are shown as circles, and calls to other generative function are shown as stars. The call that produces the return value of the function is shaded in blue.

Now, consider the update to the is_outlier variable:

(tr, _) = mh(tr, select(:data => i => :is_outlier))


Because this update only causes values under address :data to change, the static_model_with_map function can use the graph above to infer that none of the arguments to generate_all_point could have possibly changed. This will allow us to obtain the linear scaling we expected.

However, before we can use a function written in the static modeling language, we need to run the following function (this is required for technical reasons, because functions written in the static modeling language use a staged programming feature of Julia called generated functions).

Gen.load_generated_functions()


Finally, we can re-run the experiment with our model that combines the map combinator with the static language:

static_with_map_times = []
for n in ns
xs = rand(n)
ys = rand(n)
start = time_ns()
tr = block_resimulation_inference(static_model_with_map, xs, ys)
push!(static_with_map_times, (time_ns() - start) / 1e9)
end

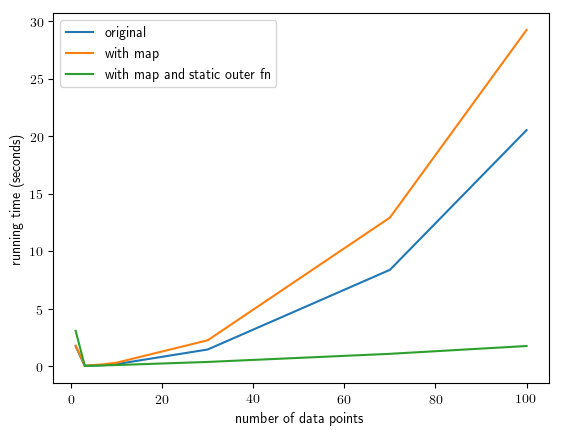

We compare the results to the results for the earlier models:

plot(ns, times, label="original")
plot(ns, with_map_times, label="with map")
plot(ns, static_with_map_times, label="with map and static outer fn")
xlabel("number of data points")
ylabel("running time (seconds)")
legend();


We see that we now have the linear running time that we expected.

## 4. Constant-factor performance gains from the static modeling language

Note that in our latest model above, generate_single_point was still written in the generic modeling language. It is not necessary to write generate_single_point in the static language, but doing so can provide modest constant-factor performance improvements. Here we rewrite this function in the static language. Note that we had to make some changes to fit into the more restrictive syntax of the static language:

@gen (static) function static_generate_single_point(x::Float64, prob_outlier::Float64, noise::Float64,
slope::Float64, intercept::Float64)
is_outlier = @trace(bernoulli(prob_outlier), :is_outlier)
mu = is_outlier ? 0. : x * slope + intercept
std = is_outlier ? 10. : noise
y = @trace(normal(mu, std), :y)
return y
end;

static_generate_all_points = Map(static_generate_single_point);

@gen (static) function fully_static_model_with_map(xs::Vector{Float64})
slope = @trace(normal(0, 2), :slope)
intercept = @trace(normal(0, 2), :intercept)
noise = @trace(gamma(1, 1), :noise)
prob_outlier = @trace(uniform(0, 1), :prob_outlier)
n = length(xs)
ys = @trace(static_generate_all_points(xs, fill(prob_outlier, n), fill(noise, n), fill(slope, n), fill(intercept, n)), :data)
return ys
end;

Gen.load_generated_functions()


Now, we re-run the experiment with our new model:

fully_static_with_map_times = []
for n in ns
xs = rand(n)
ys = rand(n)
start = time_ns()
tr = block_resimulation_inference(fully_static_model_with_map, xs, ys)
push!(fully_static_with_map_times, (time_ns() - start) / 1e9)
end

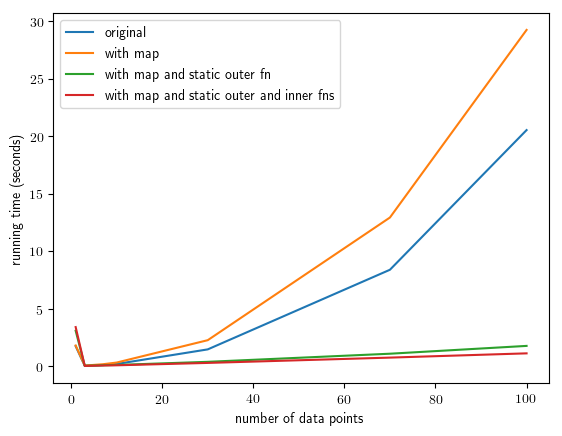

We see that we get a modest improvement in running time:

plot(ns, times, label="original")
plot(ns, with_map_times, label="with map")
plot(ns, static_with_map_times, label="with map and static outer fn")
plot(ns, fully_static_with_map_times, label="with map and static outer and inner fns")
xlabel("number of data points")
ylabel("running time (seconds)")
legend();


## 5. Checking the inference programs

Before wrapping up, let’s confirm that all of our models are giving good results:

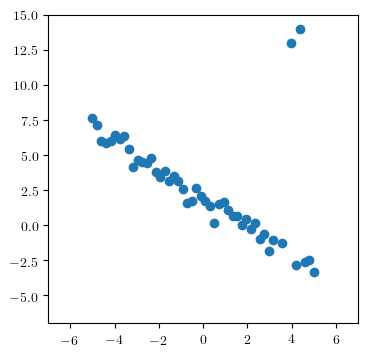

Let’s use a synthetic data set:

true_inlier_noise = 0.5
true_outlier_noise = 10.
prob_outlier = 0.1
true_slope = -1
true_intercept = 2
xs = collect(range(-5, stop=5, length=50))
ys = Float64[]
for (i, x) in enumerate(xs)
if rand() < prob_outlier
y = 0. + randn() * true_outlier_noise
else
y = true_slope * x + true_intercept + randn() * true_inlier_noise
end
push!(ys, y)
end
ys[end-3] = 14
ys[end-5] = 13;

figure(figsize=(4,4))
scatter(xs, ys);
ax = gca()
ax[:set_xlim](-7, 7)
ax[:set_ylim](-7, 15);


We write a trace rendering function that shows the inferred line on top of the observed data set:

function render_trace(trace)
xs,  = get_args(trace)
choices = get_choices(trace)
xlim = [-5, 5]
slope = choices[:slope]
intercept = choices[:intercept]
plot(xlim, slope * xlim .+ intercept, color="black")
ys = [choices[:data => i => :y] for i=1:length(xs)]
scatter(xs, ys)
ax = gca()
ax[:set_xlim](-7, 7)
ax[:set_ylim](-7, 15)
end;

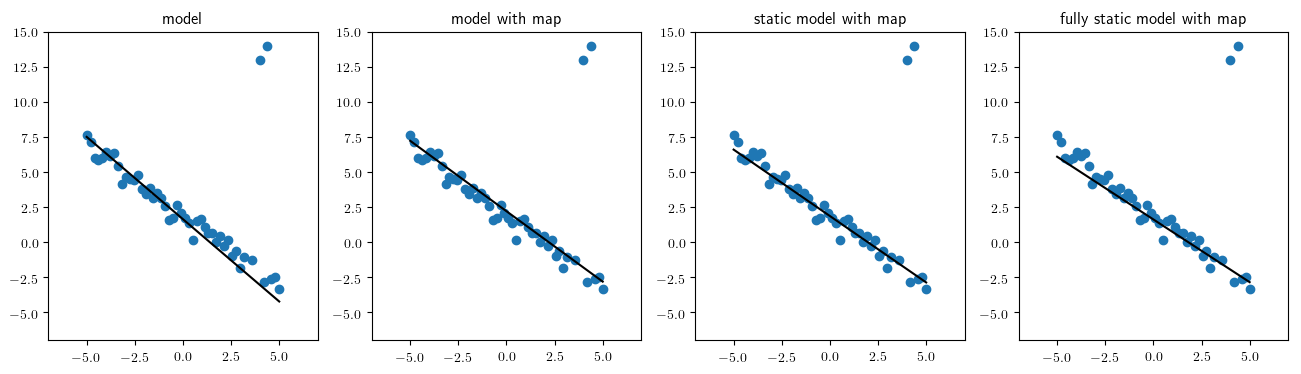

Finally, we run the experiment. We will visualize just one trace produced by applying our inference program to each of the four variants of our model:

figure(figsize=(16, 4))

subplot(1, 4, 1)
tr = block_resimulation_inference(model, xs, ys)
render_trace(tr)
title("model")

subplot(1, 4, 2)
tr = block_resimulation_inference(model_with_map, xs, ys)
render_trace(tr)
title("model with map")

subplot(1, 4, 3)
tr = block_resimulation_inference(static_model_with_map, xs, ys)
render_trace(tr)
title("static model with map")

subplot(1, 4, 4)
tr = block_resimulation_inference(fully_static_model_with_map, xs, ys)
render_trace(tr)
title("fully static model with map");


It looks like inference in all the models seems to be working reasonably.
